Key FEATURES:
Features Full diameter 305 m CAT6 network cable Core diameter: 0.565mm Excellent transmission performance using solid copper Quality verified by Fluke test Guaranteed long PoE transmission distance Great PVC flame resistance. General Core Color 1 White- Blue /Blue 2 White-Orange...
Categories: UTP Network Cable

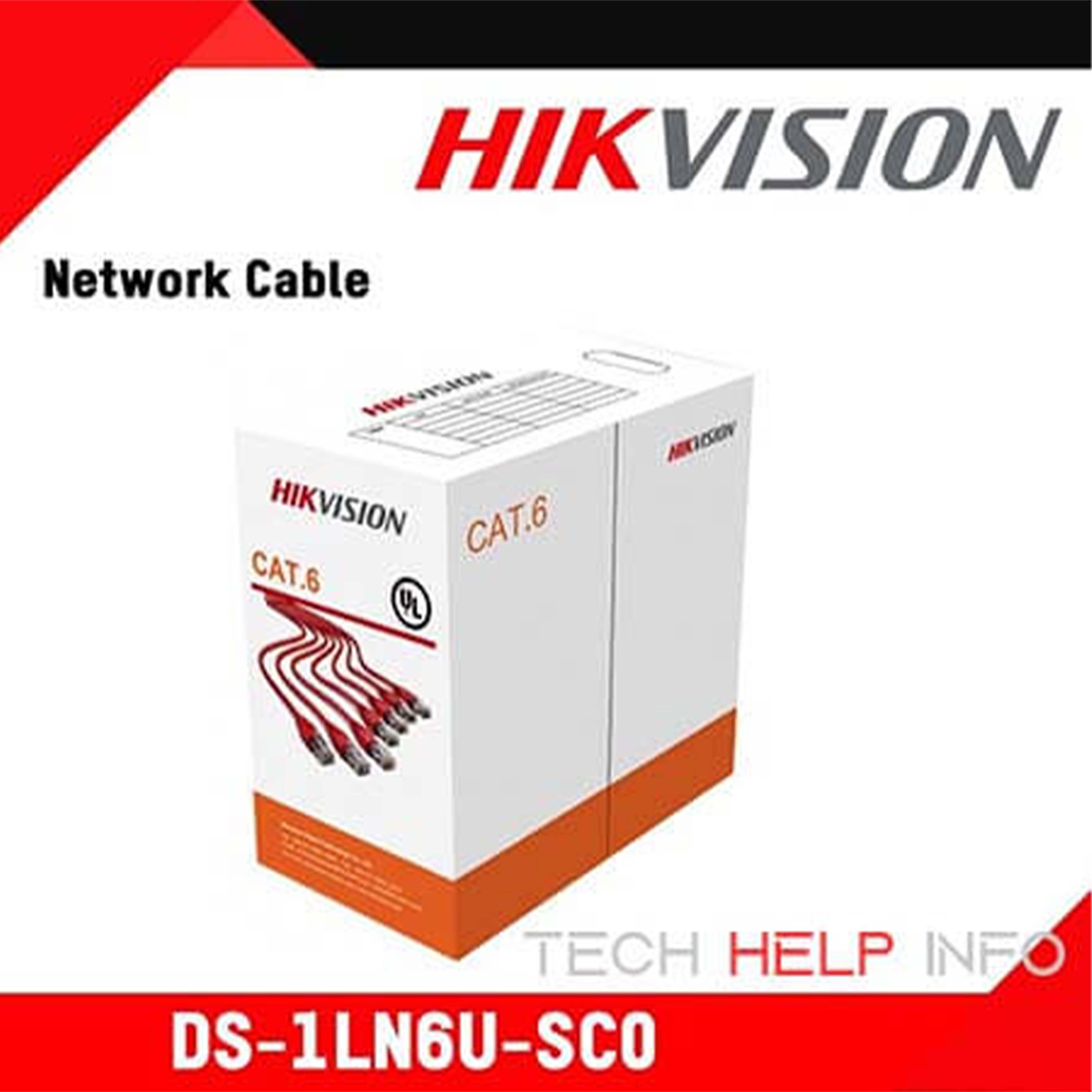

Full diameter 305 m CAT6 network cable
Core diameter: 0.565mm
Excellent transmission performance using solid copper
Quality verified by Fluke test
Guaranteed long PoE transmission distance
Great PVC flame resistance.
General
Core Color1 White- Blue /Blue 2 White-Orange /Orange 3 White-Green /Green 4 White- Brown /Brown
PackingWooden Tray & Carton
Carton DimensionPer request
Packing Length305±1.5m
Rip-CordYes
Drain WireNo
Sheath Physical PropertiesBefore Aging Tensile Strength (Mpa) ≥13.5 Elongation(%) ≥150 Aging Period (?×hrs) 100?×24h×10d After Aging Tensile Strength(Mpa) ≥12.5 Elongation(%) ≥125 Cold bend(-20±2?×4h) 8×Cable O.D.,No visible cracks
Electrical Characteristics (20?)1.0-250.0MHz Impedance ((Ω) 100±15 1.0-250.0MHz Delay Skew (ns/100m) ≤45 DC Resistance (Ω/100m) max 9.38 DC Conductor Resistance Unbalance (%) max 5.0
Conductor
MaterialSolid-Bare Copper Content 99.95%
Nom.O.D.(Mm)0.565±0.005
Insulation
MaterialHDPE
Diameter1.02±0.05mm
Sheath
Thickness0.55±0.05 mm
External O.D.6.2±0.4 mm
SurfaceClean,Frap,Satiation
MaterialPVC(complies RoHS),CM
ColorOrange RAL2003
Surface Printing
Letter Height3.0±0.3mm
ColorBlack
Print Error & Space≤±0.5%,1m
