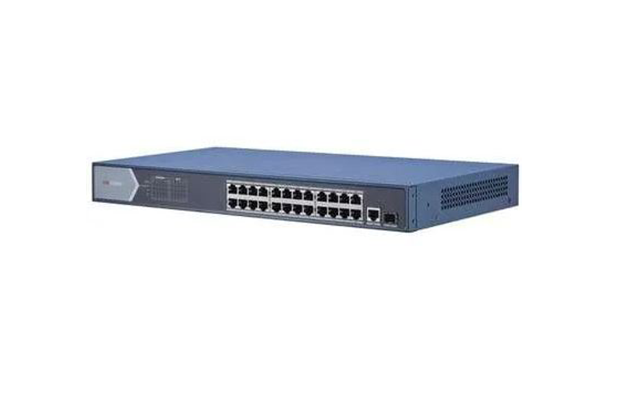

Part Number: DS-3E1518P-EI/M
General
Shell: Metal material
Net Weight: 2.7 kg (5.9 lb)
Gross Weight: 2.9 kg (6.4 lb)
Dimensions (W × H × D): 440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'')
Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity: 5% to 95% (no condensation)
Relative Humidity: 5% to 95% (no condensation)
Power Supply: 100~240 VAC, 50/60 Hz, Max. 2.5 A
Installation Mode: Rack (equipped with mounting ears)
Max. Power Consumption: 150 W
Power Consumption in Idle: 20 W
Surge Protection: 6 KV
Categories: Security, POE Switch
Part Number: DS-3E1518P-EI/M
16 x gigabit PoE RJ45 ports, 1 × gigabit RJ45 port, 1 x gigabit fiber optical port
Total PoE power budget 130 W
Unified cloud management for security systems
Network topology at your fingertips
Remote troubleshooting
Visualized topology management
Up to 300 m long-range PoE transmission
6 kV surge protection
Warranty: 1 Year on part.
