Key Features
Number of Doors Controlled
4 Doors
Number of Readers Supported
12 (8 RS-485 Reader, 4 26-bit wiegand reader)
Types of Readers Supported
26-bit Wiegand and RS485 FR Series Reader
Number of Inputs
12 (4 Exit Devices, 4 Door Contacts and 4 Aux)
Number of Outputs
8 (4 Form C relay for lock and 4 Form C relay for Aux output)
Card holders Capacity
30000
Fingerprint Capacity
3000 (Optional 20000)
Log Events Capacity
100000
Communication
TCP/IP
Package Dimension
350(L)×90(H)×300(W)mm
Package Weight
3.6kg
CPU
32 bit 400MHz CPU
RAM
32M
Flash memory
128M
Power
9.6V-14.4V DC
Operating Temperature
0 °C- 45°C
Operating Humidity
20% to 80%
Similar products
Categories: Multidoor Controller

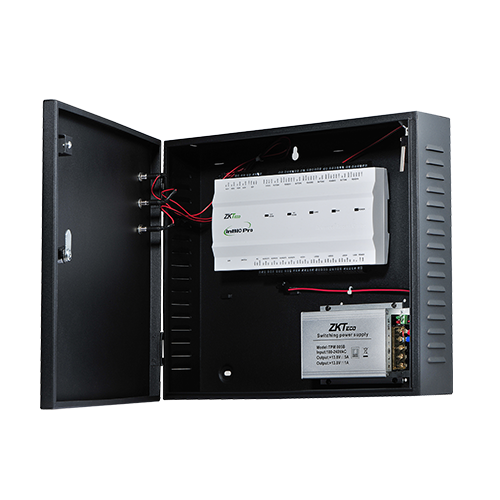

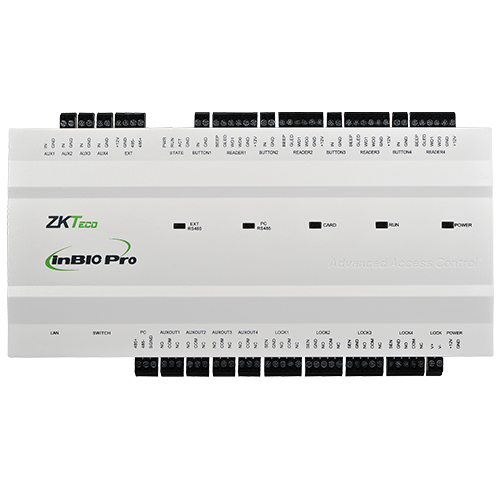

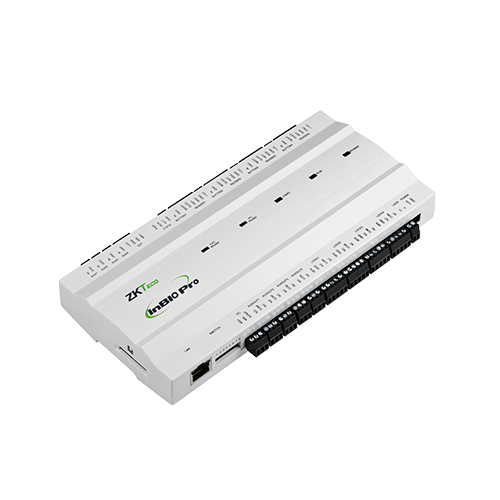

InBio Pro Series is a project oriented high-end product line with unique features such as embedded fingerprint verification and advanced access control functions, which can be managed by TCP/IP communication thru LAN or WAN networks. The InBio Pro Series are the perfect match for ZKBioSecurity web based software platform to provide a full featured biometric security solution. In combination with the FR1300 RS485 reader, the panels can authenticate users under multiple verification modes such as fingerprint, card and password for a higher security level.
Features
Support different types of readers. The FR Series of readers transmit fingerprint templates to inBio Pro via RS485. Wiegand inputs are also provided for traditional RFID readers
More than Door Control. Access additional control and interface with auxiliary relays
Communication. Can be installed easily on your network and support both HTTP/HTTPS communication
Capacity. Support up to 20000 fingerprint templates, 60,000 cards and store up to 100,000 events and transactions
Advanced Access Control Built-In. Anti-Passback, First-Card Opening, Multi-Card Opening, Duress Password Entry, and Auxiliary input/output linkages are built into controller firmware
Lowest Total Cost of Ownership. Controller firmware can be upgraded without any advanced tools
23,000.00 BDT 23,500.00 BDT
