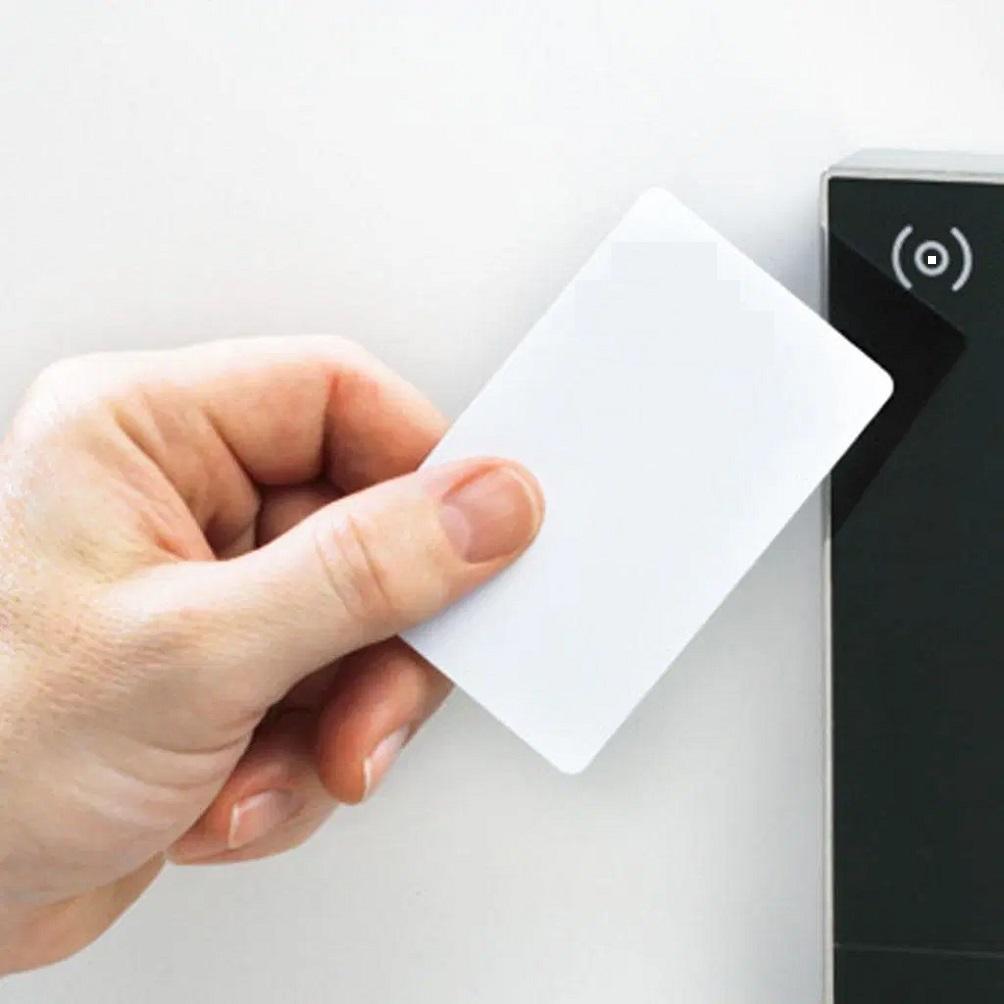

This is 125KHz RFID Card used for Contactless transmission of data and supplies energy with no battery needed. Its Operating distance is Up to 100mm depending on antenna geometry. Operating frequency is 125KHz and Data transfer speed is 106 kbit/s.
It is featured with Data integrity of 16 Bit CRC, parity, bit coding bit counting which allows Anti-collision. These cards are typically used in ticketing transaction: <100 ms including backup management. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Contactless transmission of data and supply energy (no battery needed)
Anticollision
EEPROM
1Kbit, organized in 16 sectors, each district two passwords
User definable access conditions for each memory block
Data retention of 10 years.
Write endurance 100 000 cycles
Individual key set per sector (per application) to support multi-application with key hierarchy
A unique serial number for each device
Transport key protects access to EEPROM on-chip delivery.
| General Specification | |
| Chip Type | T5577 |
| Operating Distance | Up to 1 to 5 cm (Depending on Antenna Geometry) |
| Operating Frequency | 125 kHz |
| Storage Capacity | 330 bits |
| Communication Rate | 9600 bonds |
| Reading and Writing Time | 67 ms |
| Erasable Life | >100000 times |
| Operating Temperature (°C) | -20 to 60 |
| Dimensions (mm) | 85×53.5×1 |
| Shipment Weight | 0.04 kg |
| Shipment Dimensions | 9 × 7 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x EM4100 125kHz RFID Card.
