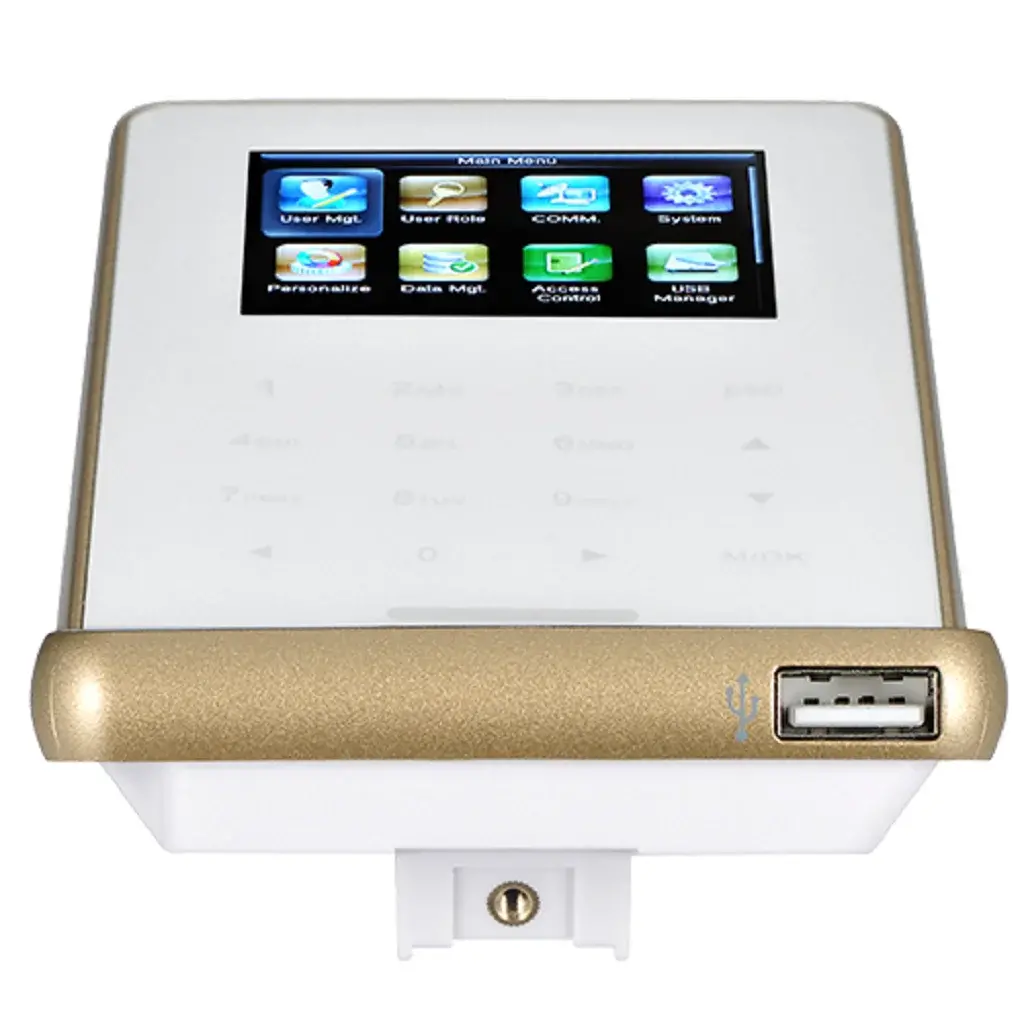

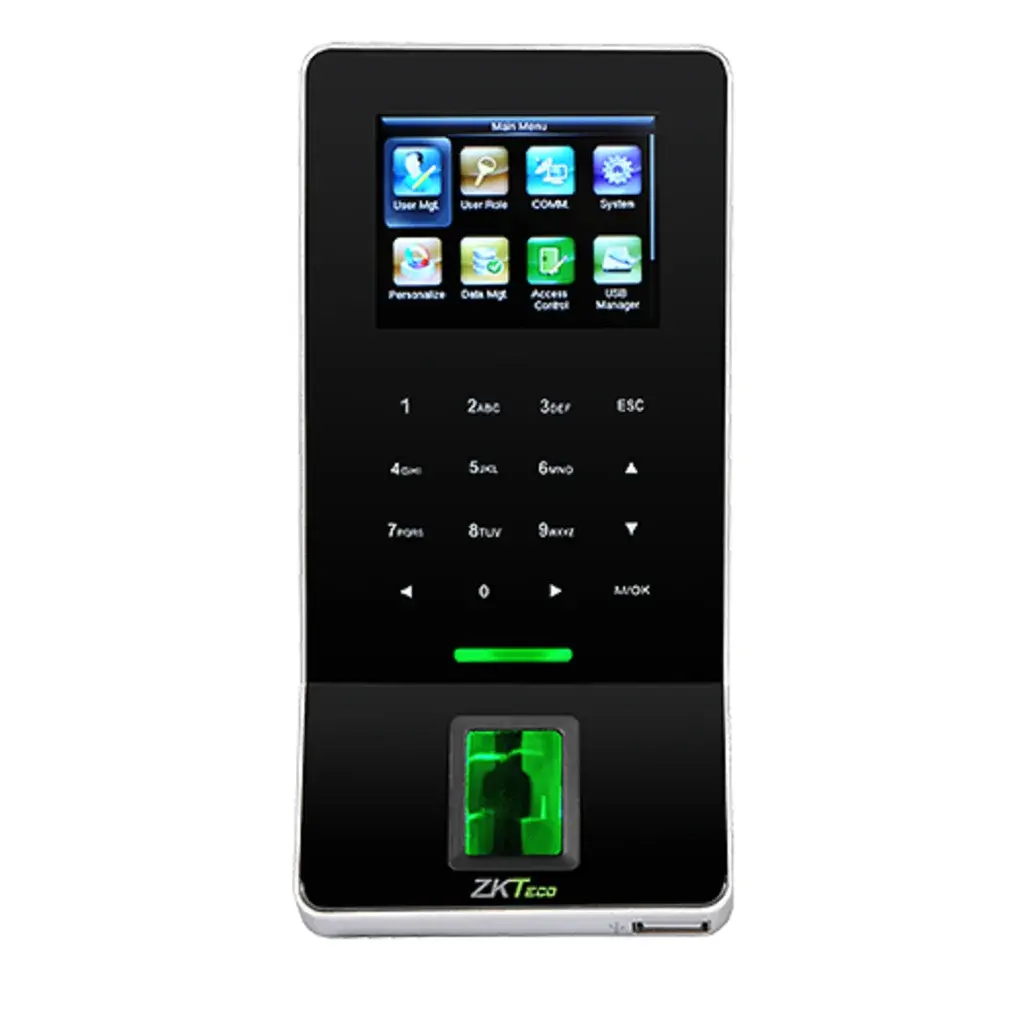

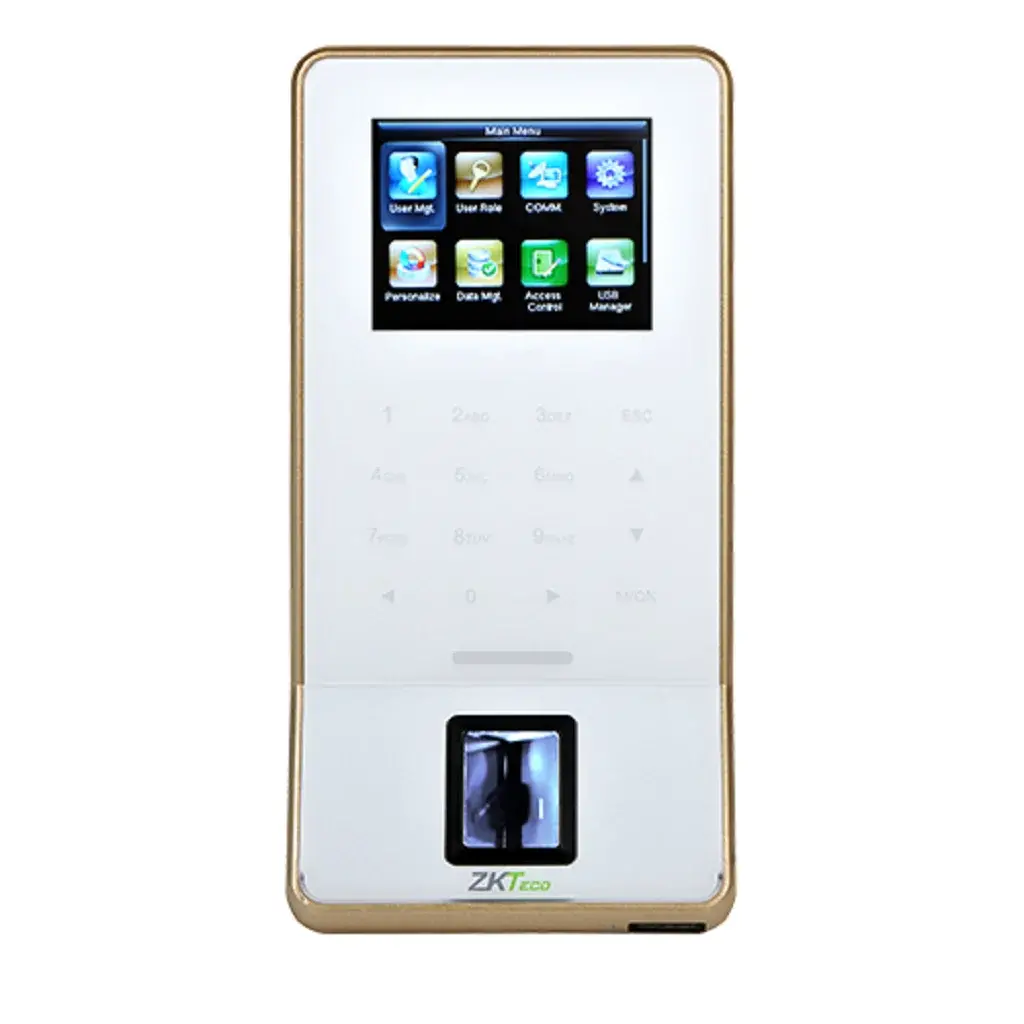

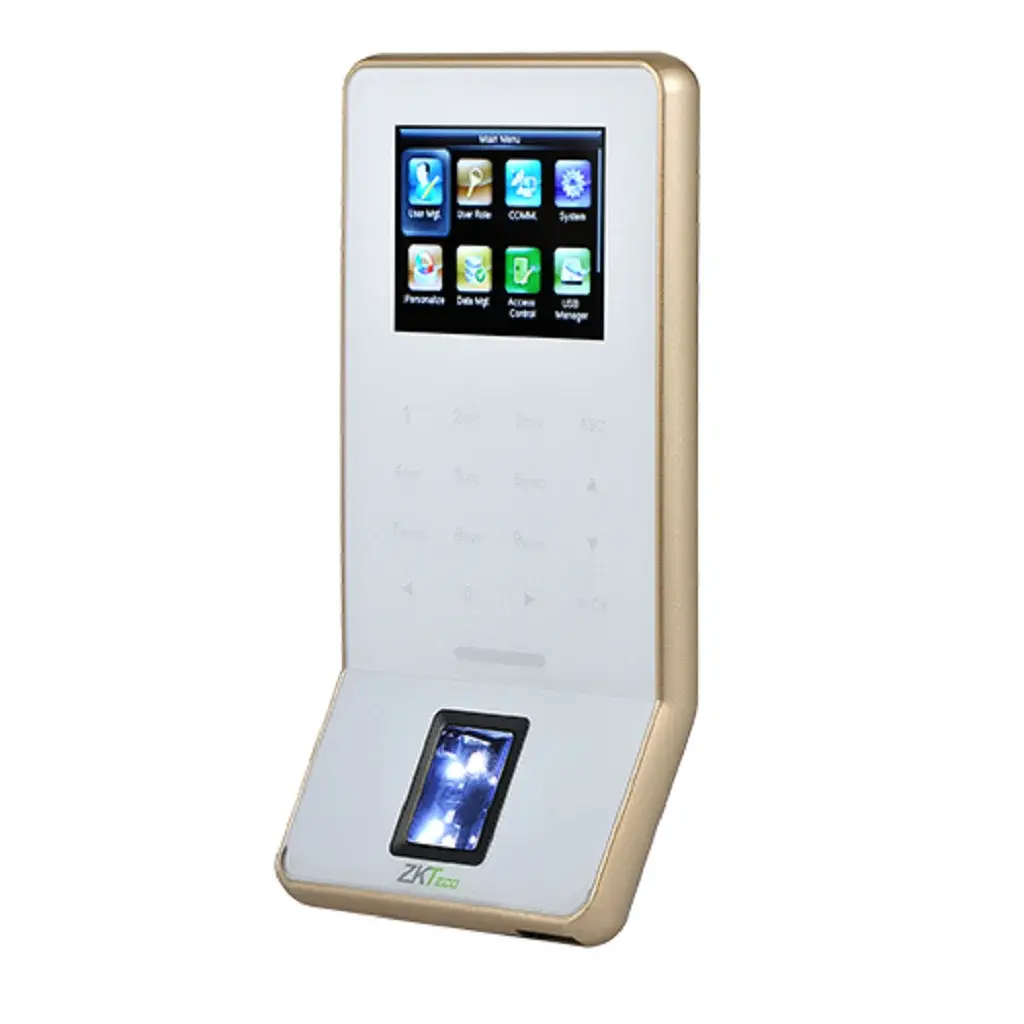

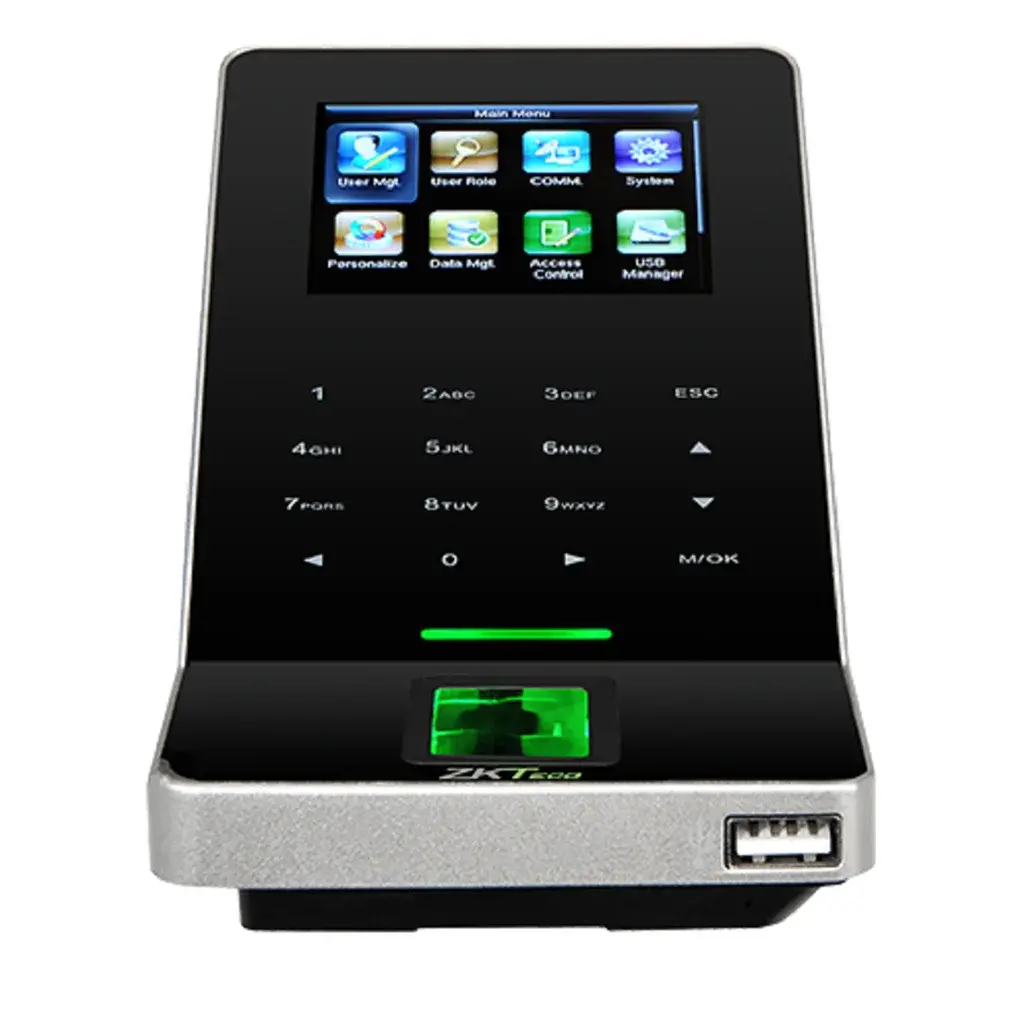

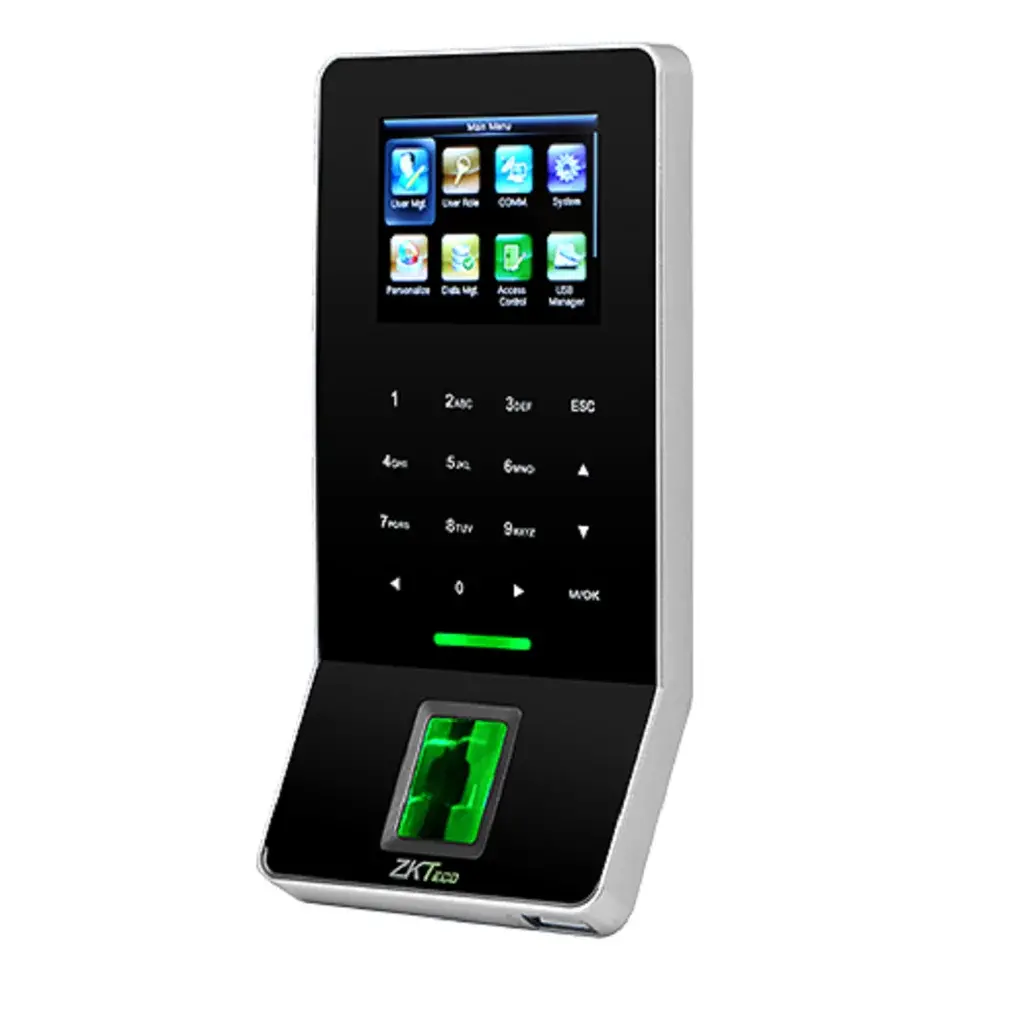

ZKTeco F22 Fingerprint Time Attendance and Access Control Terminal with Wi-Fi

ZKTeco F22 Fingerprint Time Attendance and Access Control Terminal
F22 is an ultra-thin fingerprint time attendance and access control terminal with BioID sensor and Wi-Fi, which offers unparalleled performance with advanced algorithm for reliability, precision and excellent matching speed. F22 features the fastest commercial-based fingerprint matching algorithm and ZKTeco high-performance, high-image quality infrared detection fingerprint sensor. F22 provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any third-party access control panel that supports standard Wiegand signal. TCP/IP, RS485 and Wi-Fi are also available that the device can be used in different networks.

Technical Specification of ZKTeco F22

Display 2.4-inch TFT LCD Color Screen
Fingerprint Capacity 3,000
Card Capacity 5000(Optional) ID or IC card
Transaction Capacity 30,000
Sensor BioID Sensor/ SilkID Sensor (optional)
Algorithm Version ZKFinger VX10.0
Communication RS232/485, TCP/IP, USB-host,Wi-Fi
Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
Wiegand Signal Input, Output
Aux. Input 1ea for linkage function
Power Supply 12V DC,3A
Operating Temperature 0 ℃- 45℃
Operating Humidity 20%-80%
Dimension(LxWxH) 158.5x78.0x19.4mm
SDK and software PUSH AC SDK, ZKBio Access

Key Features
Fast Authentication Speed
Intelligent Capture
Auto-sensing
Multiple Application
Easy and accurate operation with convenient graphic LCD
Improved security.
Faster access.
Higher accuracy.
Greater convenience.
Helpful for calculating
